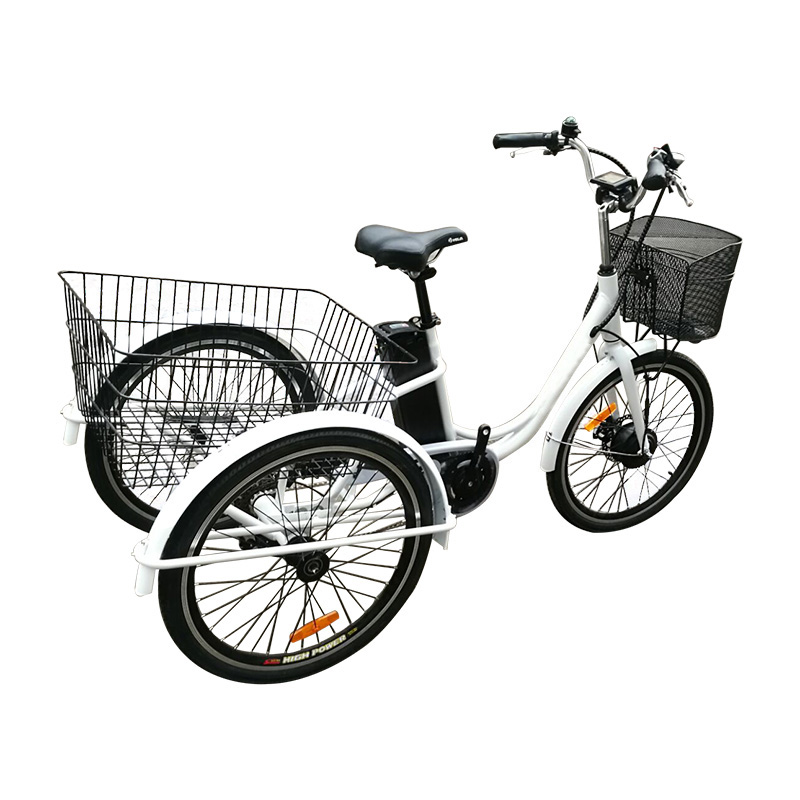

Three wheel electric road tricycle for cargo

Model Number:V-TDM2Z
Tire:F&R 24
Brake:Disc Brake
Max Speed:25~38Km/h
Power Supply:Lithium Battery
Net Weight:34kgs
Battery Capacity:10.4Ah
Battery Vottage:36V

36V250W  bafang motor FrameAlloy Aluminum

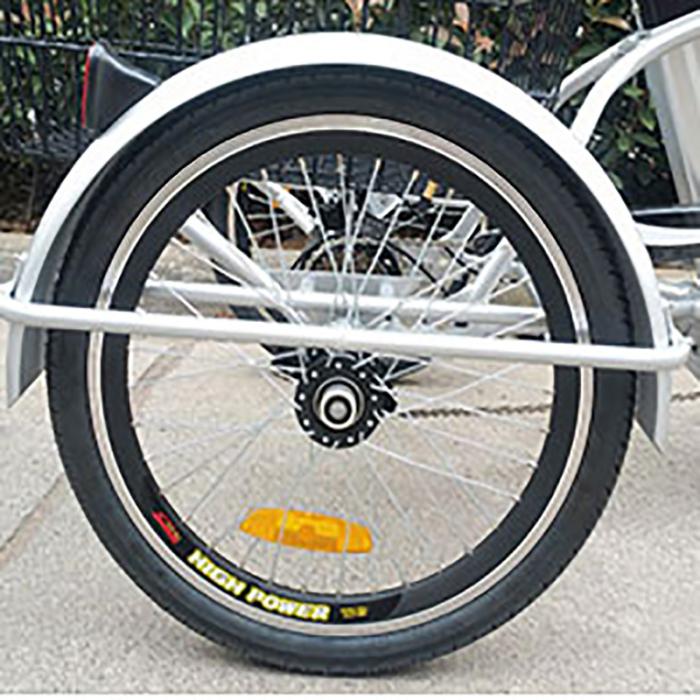

Battery36V10.4Ah (Removeable)tyresF&R 24" x 1.75/2.125 Kenda
ControllerSine wave controller, high efficiency     RimDouble Alloy Aluminum
Charger100~240V, 50-60Hz,ForkNo suspention aluminum alloy front fork (RST suspention front fork )

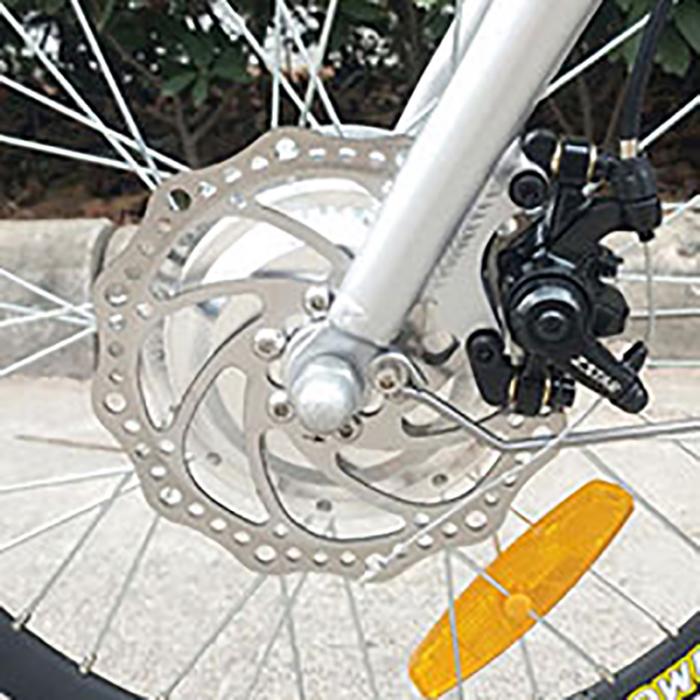

DisplayerAPT 800s LCD displayFront & rear Brakemechanical Disc-brake  T
PAS1:1 Pedal Assisted SystemfenderSteel
Speed25-38Km/hDerailleurShimano tourney 6 speed  (optional altus 7 speed)
Range45-100kmHandle Bar&StemAlloy aluminum
Max Load150KGSfront & rear lightSpanninga LED light
N.W / G.W34kg /42kgBrake LevelWuxing Alloy aluminum,power-off when braking with parking function
Spokesfront 12G / rear13g Stainless steelChainRust resistant chain,KMC
ColorMatt black, white, red,blue...Chain wheel   Steel 38T*152 mm,Prowheel
Load Capacity36pcs/20GP, 72pcs/40HQSaddleLeather Soft comfortable velo (black or brown color)
Carton Size1450mm * 750mm * 670mmPedalAlloy aluminum with reflector,  Wellgo


1. OEM and ODM are available.  Any question you can feel free to contact me, any time.

2. The warrenty is 1 year. If there is no man-made problem during the warrenty period, we will provide replace and repair for our customers with free.

3. The replaceable betteries or other parts of the scooter you can order from our factory after the warranty expires.

4. Safety first, don't ride on the motor way and don't try to ride on red light,Drink drive is strictly prohibited and don't driving against the traffic, For your safely and power saving, please use the first and second gear

5. After sale: if there are any problems with the scooter, please feel free to contact us, and here is the email of our service team leader

6. Please send the video of the scooter, and show what the problem is. And please note that We are not responsible for any problems caused by modifying the configuration of the scooter and refitting the scooter.

L/C,T/T,Paypal,West Union
