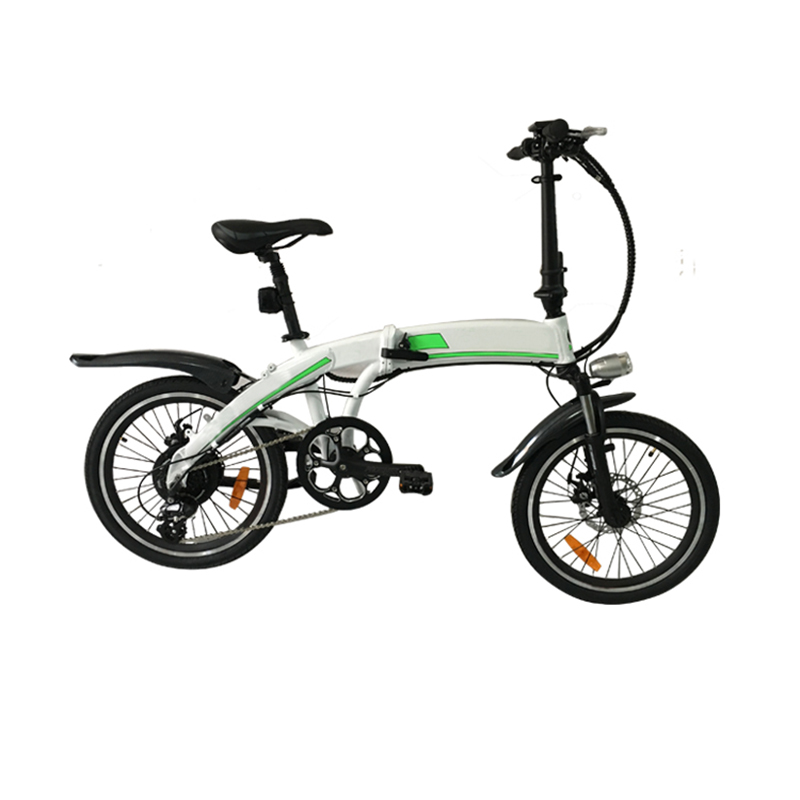

20 inch foldable electric bike small size mini electric bike
| Model Number: | V-TDN9Z |
| Tire: | 2inch x 1.75 kenda tire |

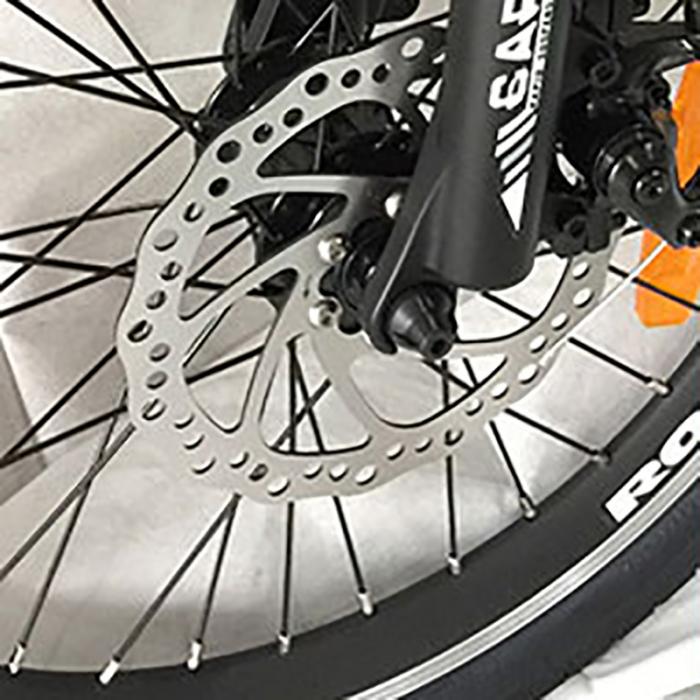

| Brake: | Disc Brake |
| Max Speed: | 25Km/h |
| Motor: | Brushless |
| Power Supply: | Lithium Battery |
| Net Weight: | 24kgs |
| Battery Capacity: | 8.7Ah |
| Battery Vottage: | 36V |
| Range: | 55~60KM |

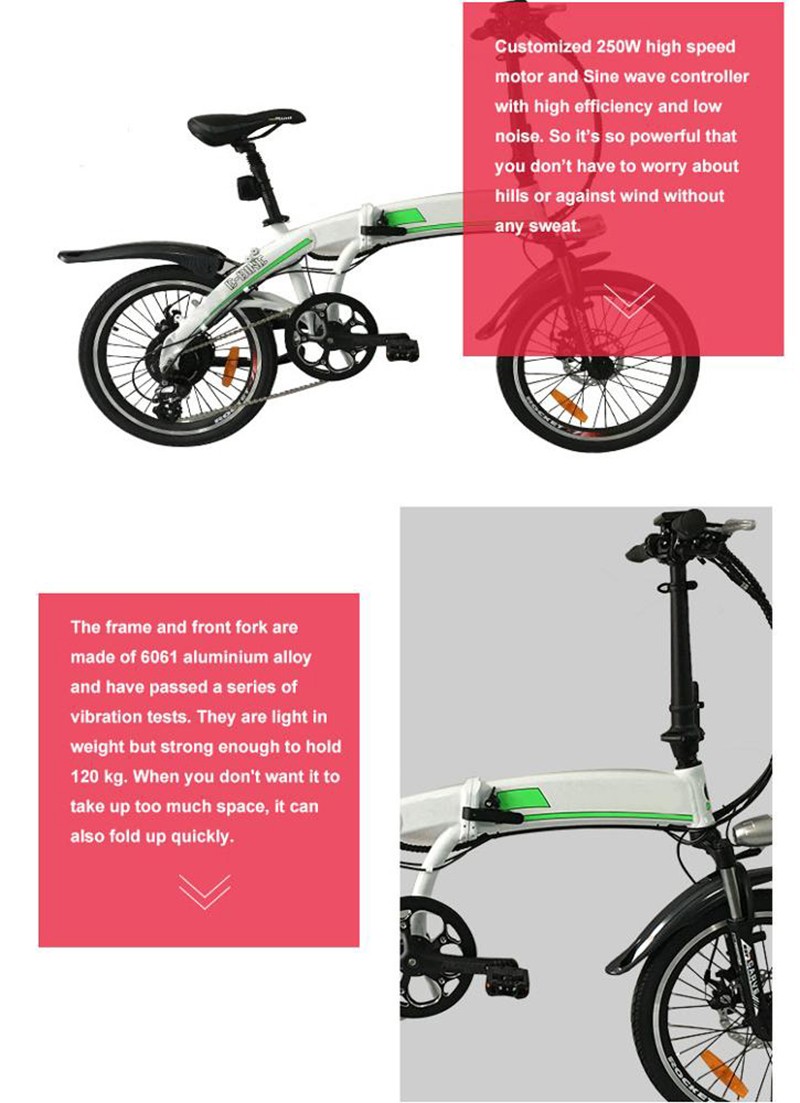

| Motor | 36V250W bafang motor | Frame | Alloy Aluminum |
| Battery | 36V 8.7Ah (Removeable) | tyres | 20" x 1.75 kenda tire |
| Controller | high efficiency, high efficiency | Rim | Alloy Aluminum, Double Wall |
| Charger | 100~240V, 50-60Hz, | Fork | Aluminum Alloy front fork |

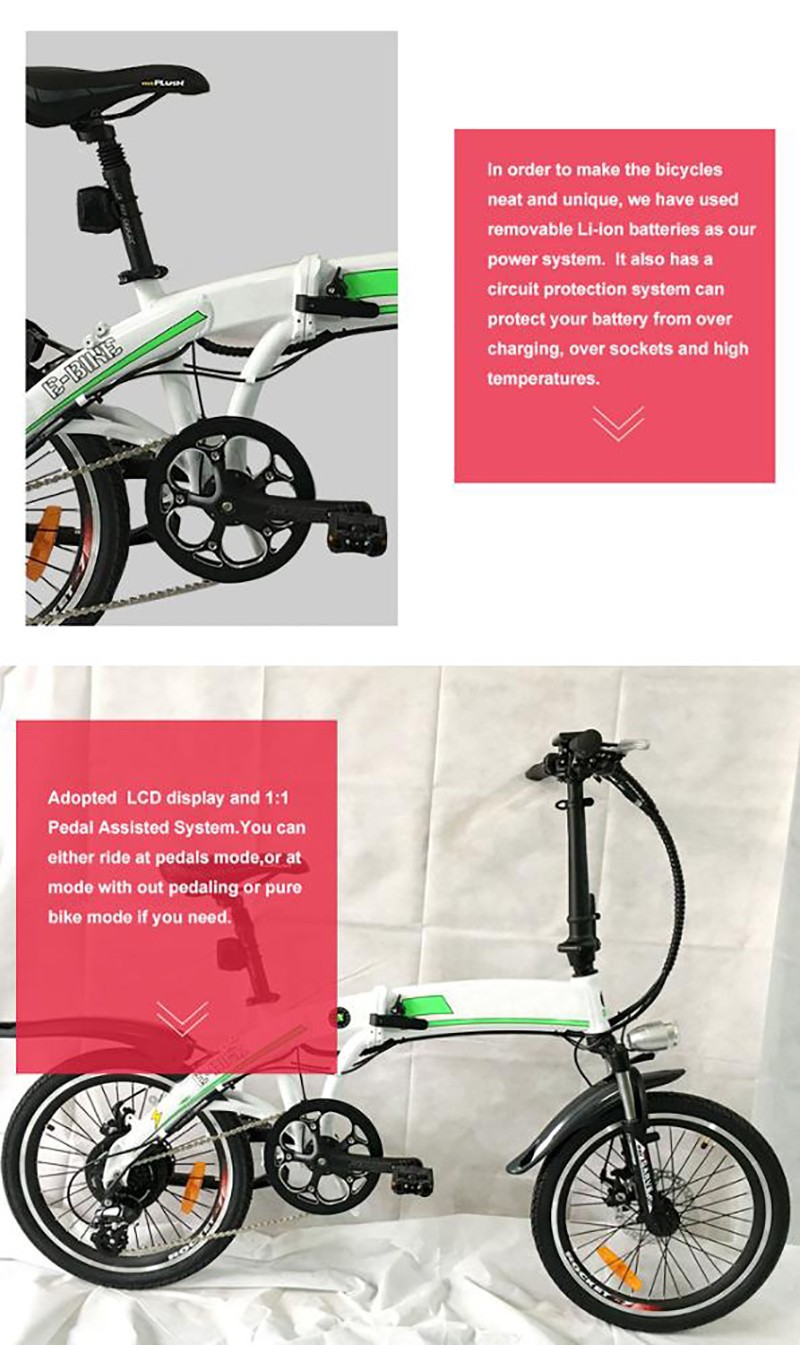

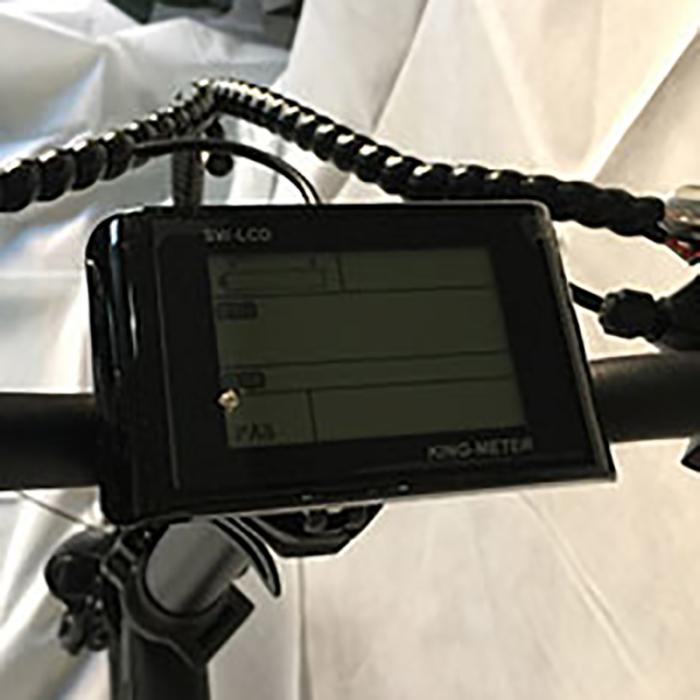

| Displayer | 3-Speeds,King meter LED,On/Off button | Front & rear Brake | tektro mechanical disc brake |
| PAS | 1:1 Pedal Assisted System | fender | PVC |
| Speed | 25Km/h | Derailleur | Shimano tourney 6 speed |
| Range | 55-60km | Handle Bar&Stem | Aluminum Alloy |
| Max Load | 150KGS | front & rear light | Spanninga LED light |

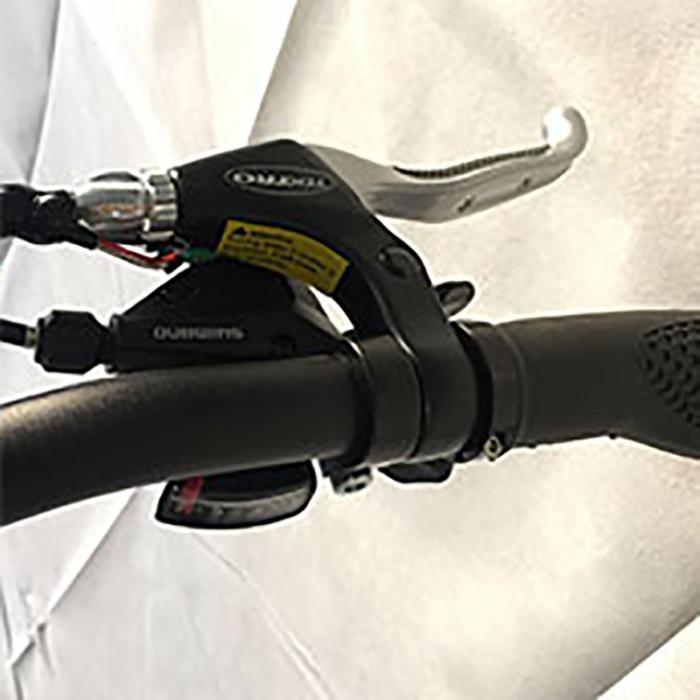

| N.W / G.W | 24kg /29kg | Brake Level | tektro Alloy aluminum,power-off when braking |
| Spokes | 13g Stainless steel | Chain | Rust resistant chain,KMC |
| Color | Black, White, red,blue... | Chain wheel | Aluminum alloy 46T*170 mm,Prowheel |
| Load Capacity | 130pcs/20GP, 270pcs/40HQ | Saddle | Soft comfortable,Velo |
| Carton Size | 890mm * 370mm * 630mm | Pedal | Plastic with reflector,foldable |
1. OEM and ODM are available. Any question you can feel free to contact me, any time.
2. The warrenty is 1 year. If there is no man-made problem during the warrenty period, we will provide replace and repair for our customers with free.
3. The replaceable betteries or other parts of the scooter you can order from our factory after the warranty expires.
4. Safety first, don't ride on the motor way and don't try to ride on red light,Drink drive is strictly prohibited and don't driving against the traffic, For your safely and power saving, please use the first and second gear
5. After sale: if there are any problems with the scooter, please feel free to contact us, and here is the email of our service team leader
6. Please send the video of the scooter, and show what the problem is. And please note that We are not responsible for any problems caused by modifying the configuration of the scooter and refitting the scooter.
